1.Product functional advantages
1) Independent research and development, production, reasonable price, and sufficient power.
2) Cut off all signal communication between the drone and the controller. The drone remote control is malfunctioning.
3) The ground controller of the drone cannot receive aerial videos and images.
4) Drones are unable to locate, forcing them to land, hover, or return.
2.Technical parameters
|
Indicator |
Parameter |
|
Product Name |
Portable UAV Control Equipment |
|
Power supply |
battery life of 30-90 minutes. |
|
Operation mode |
One handed or two handed operation, can open three frequency bands arbitrarily. |
|
Cooling method |
air cooling |
|
Intercept methods |
forced return, forced landing, hovering, image transmission interference |
Support frequency band and power
|
Frequency band |
Operating frequency |
Average output power |
Power (W) |
|
|
433M |
433 MHz |
43dBm |
20w |
|
|
900M |
840-930MHz |
46dBm |
40w |
|
|
1.2G |
1170-1280MHz |
43dBm |
20w |
|
|
1.4G |
1400-1450MHz |
43dBm |
20w |
|
|
1.5G |
1550-1620MHz |
46dBm |
40w |
|
|
2.4G |
2380-2500MHz |
46dBm |
40w |
|
|
5.2G |
5150-5350MHz |
46dBm |
40w |
|
|
5.8G |
5720-5850MHz |
46dBm |
40w |
|
|
Power consumption: 300W |
Power supply: AC220V - DC24V 5000MA |
|||
|
Total power: 260W |
Interference distance: 500-3000M |
|||
|
Size (length x width x height): 72 * 30 * 15CM |
Weight: 4.5Kg |
|||
|
Outer packaging: 80 * 41 * 20cm, |
weight 11kg |
|||
|
Antenna: Built in, high gain array antenna |
||||

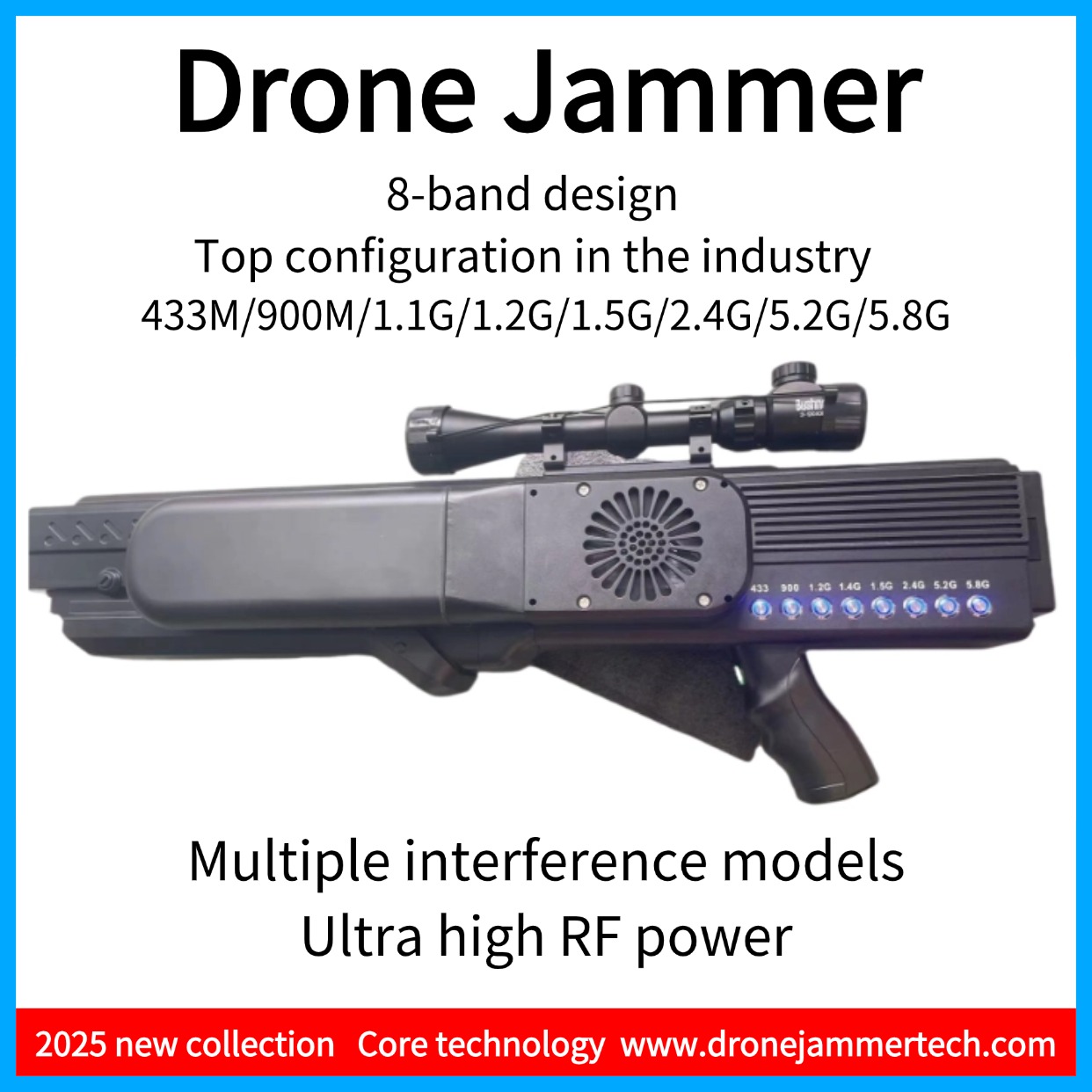

3.Product Image
