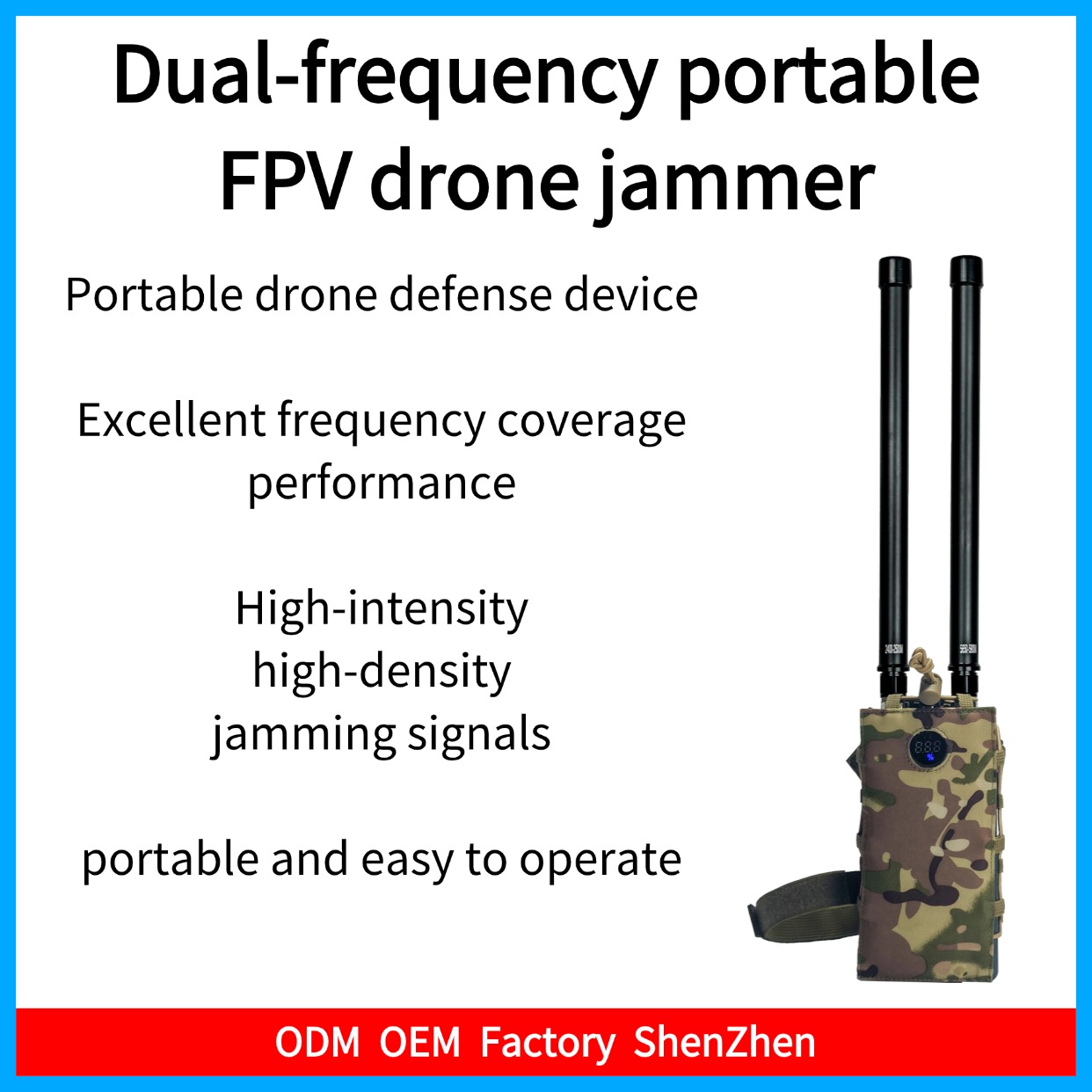

1. Product Introduction
The dual-frequency handheld drone jammer is a portable drone defense device specifically designed to interfere with the flight of FPV drones. This device excels in frequency coverage, encompassing multiple frequency bands, including common drone communication and navigation bands, ensuring effective interception of FPV across different frequency ranges.
This dual-band handheld drone jammer can generate high-intensity and high-density jamming signals, ensuring effective interference with drones. By transmitting jamming signals within the drone's operating frequency band, the device can prevent the drone from receiving or processing commands normally, thus preventing it from flying or forcing it to land.
2. Function
1) Portable and easy to carry.
2) Lightweight yet efficient.
3) Personal safety protection.
4) Suitable for various environments.
5) Customizable 60W high-power version.
6) It may interfere with the signal reception of ELRS equipment.
3. Technical parameters
|
NO |
Product |
Details |
|
1 |
Frequency band |
700-1000MHz + 2.4GHz |
|
2 |
Output power |
30W+30W |
|
3 |
Battery capacity |
32000mAh |
|
4 |
Working time |
40 minutes |
|
5 |
Waterproof rating |
IP65 |
|
6 |
Operating current |
4-5A |
|
7 |
Operating temperature |
-20℃-70℃ |
|
8 |
Antenna port |
N-female |
|
9 |
Charging port |
24-28V charging port |
|
10 |
Device switch |
Press the button |
|
11 |
Battery indication |
Yes |
|
12 |
Equipment color |
Green |
|
13 |
Material |
Aluminum |
|
14 |
Dimensions |
189×55×24 mm |
|
15 |
Weight |
1.5kg |
|
16 |
Antenna |
All-glass fiber - φ20*300mm |
|
17 |
Antenna gain |
3-4dBi |
|
18 |
Device adapter |
DC 24-28V |
|
19 |
Jamming range |
100-300 meters (depending on the signal strength in the local area) |
4. Optional frequency combination
l 300-400MHz 1100-1300MHz
l 400-500MHz 1300-1500MHz
l 500-600MHz 5100-5300MHz
l 600-700MHz 5300-5500MHz
l 700-850MHz 5500-5700MHz
l 850-1000MHz 5700-5900MHz
l or customize
5. Shipping List
|
Shipping List |
||
|
NO |
Name |
Quantity |
|
1 |
Host |
1 |
|
2 |
Charger |
1 |
|
3 |
Antenna |
FRP omnidirectional antenna *2 |
|
4 |
Camouflage holster |
1 |
