1. Product Features
1) Strong magnetic adsorption type, convenient for vehicle-mounted.
2) Internal battery .
3) The counter FPV effect is good.
4) Customized antenna with excellent anti-interference performance.
5) Host antenna integration.
6) Remote control operation.
7) Customizable frequency bands (4-6-8 channels) and power output (30-50W) (available for a fee).
8) Single-channel switching technology for power output control.
9) Customizable power supply options: AC220V or DC24-28V.

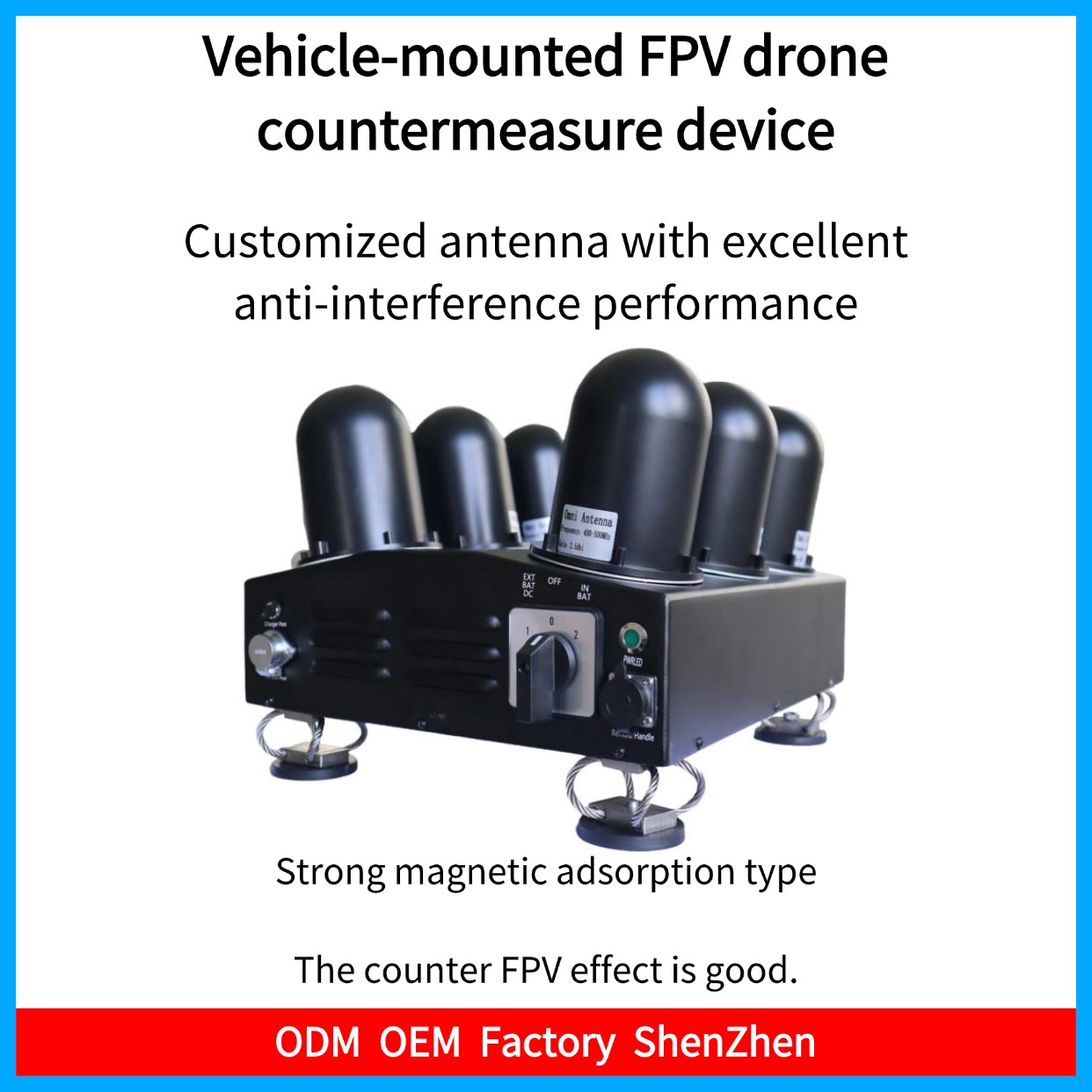

2. Product Image
3. Product Parameter
Customizable frequency band · Customizable power · See reference below
|
order number |
service frequency |
output power |
antenna gain |
|
1 |
400-500MHz |
50W |
2.5dbi |
|
2 |
500-600MHz |
50W |
3dbi |
|
3 |
600-800MHz |
50W |
3dbi |
|
4 |
800-1050MHz |
50W |
3dbi |
|
5 |
2400-2500MHz |
50W |
5dbi |
|
6 |
5725-5850MHz |
50W |
6dbi |
|
customizable |
1550-1620MHz |
50W |
5dbi |
|
customizable |
5150-5300MHz |
50W |
6dbi |
|
Battery: 11A Power supply: approximately 30 minutes Supports AC220V and DC24-28V power supply customization |
|||
|
Main weight: 15kg Host size: 41·36·30cm Package dimensions: 52.46.42cm [Carton packaging] Total weight: 18kg |
|||
|
Countermeasure range: 300-800 meters (depending on the drone model and flight altitude) |
|||
|
Product list: Main unit + Power cord + Backpack + Omnidirectional antenna |
|||
4. Usage Instructions
1) Before use, check that the device is in good condition and all accessories are included.
2) Charge the battery before use.
3) Connect the remote control to the host.
4) Press one or all function keys to activate the device.
5) Close the function button after use.
5. After-sales
Non-human damage, one-year product warranty.
